When is the 20 kHz limitation an issue? How big an issue?

The 20 kHz bandwidth of CD audio media may cause truncation of some material. Here is an example of a small amount of energy above 20 kHz in a symphonic recording. It is interesting to note that this is a 7.5 in/s recording done on 1970s prosumer equipment. I’ve said in my presentations for some years, most 7.5 in/s tapes are well-suited to 44.1ks/s 16 bit transfers, but there are exceptions. This shows one.

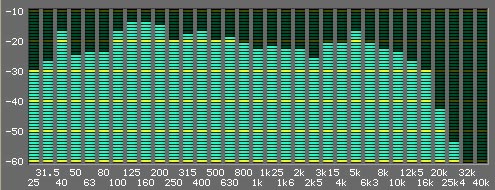

Whether or not it’s distortion products or real music has been argued by some. I have been transferring most music programs at 88.2ks/s and 24 bits since about 2003. Here is a recent spectral bar graph that shows a 7.5 in/s tape I made in 1974 played in 2005. This shows the peak spectral energy of a portion of Smetana’s Dances from “The Bartered Bride.” Note the energy in the 25k4 band – this came up with cymbal crashes during a crescendo. This is the original master recording using a pair of AKG C-451 microphones feeding a ReVox A77 on Scotch 207 tape.

7.5 in/s tape spectral content
